Checking Direction Indicator Shunt

Fig 1: Identifying Ignition Switch OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.

  Check that the shunt for the left/right direction indicator is fitted correctly.

  At the same time check the connection:

  Diagnostic trouble code CEM-8F02

  in particular 20/32 3

  Diagnostic trouble code CEM-8F03

  in particular 20/34 3

  for a short circuit to ground as described in Short-circuit to ground, permanent faults or an open circuit as described in Open-circuit, permanent faults .

  Additional information:

  • To replace shunt see Central electronic module (CEM), replacing .
  Fig 2: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.

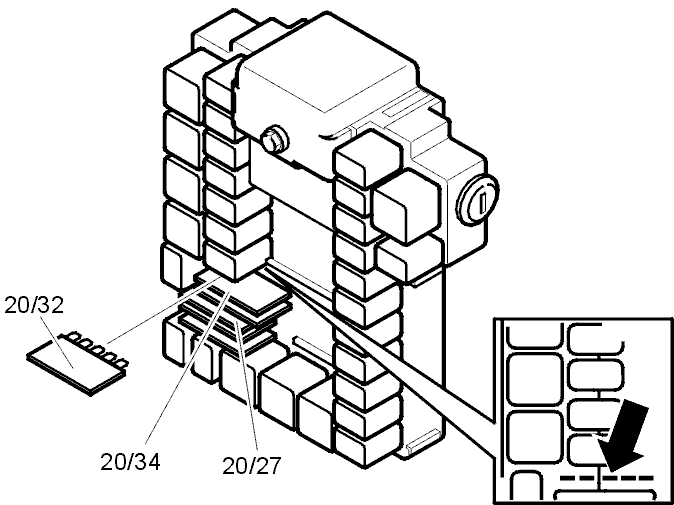

  Fig 3: Identifying Relays And Shunts

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Is there a fault?

• YES

  Refer to Verification

• NO

  Refer to Replacing Direction Indicator Shunt
