Checking the Wiring

Check wiring between central electronic module (CEM) #9A and beam setting control module #2 (6/38) for LH and (6/39) for RH actuator, for short circuit to ground, as described in Short-Circuit To Ground, Permanent Faults .

Check wiring between central electronic module (CEM) #9A and beam setting control #2 (6/38) for LH and (6/39) for RH actuator for an open circuit, as described in Open-Circuit, Permanent Faults .

Do the necessary corrective action.

Additional information:

• For information on the central electronic module (CEM), see Central Electronic Module (CEM), Replacing .

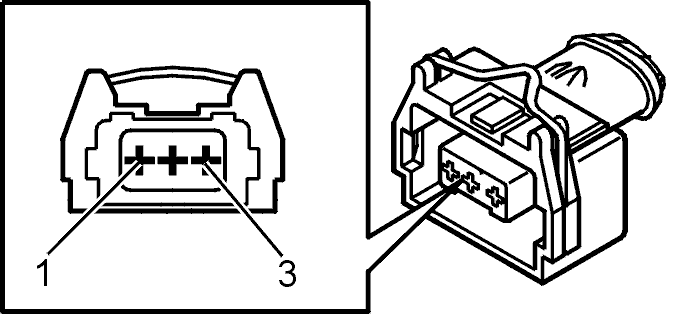

Fig 1: Identifying Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Ground Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Is there a fault?

• YES

  Refer to Verification

• NO

  Refer to Information
