Checking the Relay

Check that relay 2/93 is correctly connected. Check that the relay is not defective.

Remedy as necessary.

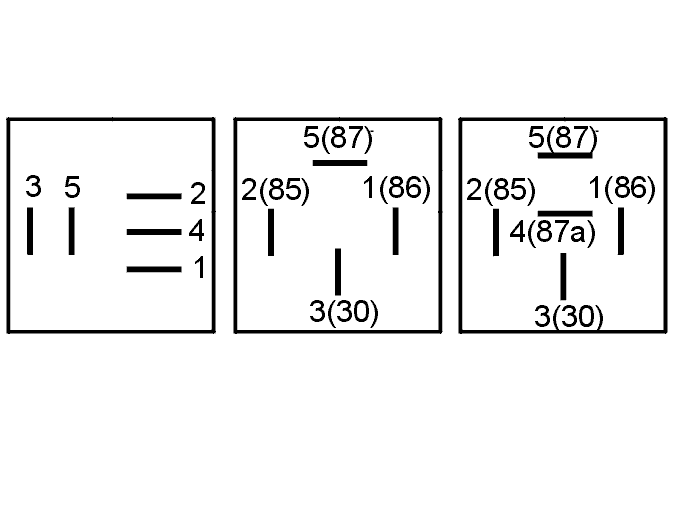

Fig 1: Identifying Relay Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Was a fault detected?

• YES

  Refer to Verification

• NO

  Refer to Checking the Cable
