Checking Fusebox

Remove headlight washer relay (2/182) from the fuse box socket.

Check the relay winding's drive circuit for short-circuiting to voltage by measuring voltage between #2 and ground in the relay socket.

Voltage between #2 and ground shall be battery voltage.

Remedy as necessary.

Other information:

• See Contents

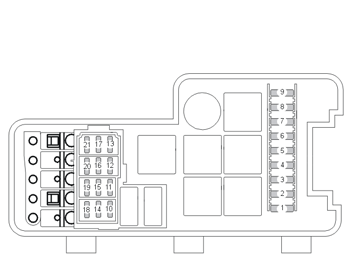

Fig 1: Identifying Fusebox

Courtesy of VOLVO CARS OF NORTH AMERICA.

Do you wish to continue with fault tracing?

• YES

  Refer to Checking the Wiring

• NO

  Refer to Verification
