Checking cable and component

Check the signal cable between rear electronic module (REM) connector terminal #42 (#F2) and terminal #1 on the lock mechanism connector. Check for a short-circuit to supply voltage. Check for an open-circuit.

Remedy as necessary.

Other information

• See Connecting the breakout box
• See Signal specification
• Disconnecting the rear electronic module (REM), see Rear electronic module (REM), replacing
• See Contents

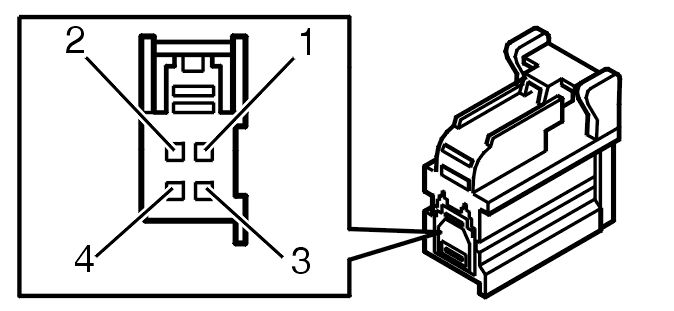

Fig 1: Identifying Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Tailgate Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
