Checking cable and component

Check connector D for the rear electronic module (REM) and the connector for the inclination sensor module (ISM). Check for contact resistance and oxidation.

Check the communication cable between rear electronic module (REM) connector terminal #26 (#D26) and inclination sensor module (ISM) connector terminal #2. Check for an open-circuit.

Check the cable between inclination sensor module (ISM) connector terminal #5 and the ground terminal. Check for open-circuit.

Remedy as necessary.

Other information

• See Connecting the breakout box
• See Signal specification
• Disconnecting the rear electronic module (REM): Rear electronic module (REM), replacing
• See Contents

Fig 1: Identifying Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

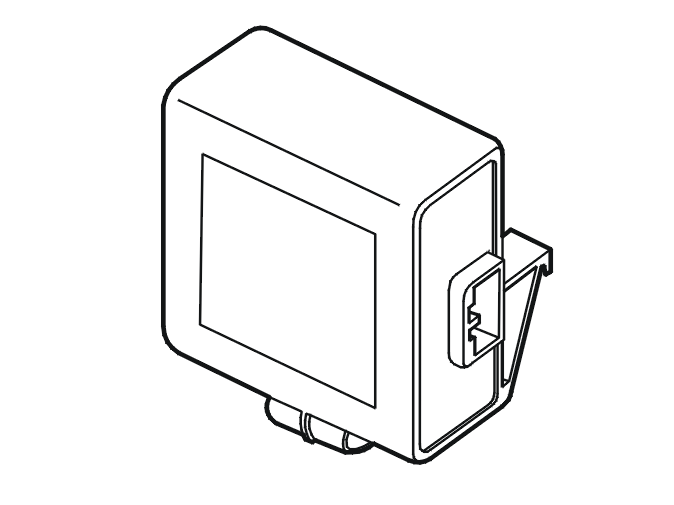

Fig 2: Identifying Inclination Sensor Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
