Replacing the relay

Replace the relay for the rear foldable head restraint (position 2/75). Check the relay connection, in particular the relay guide (2/75 terminal #2). Check for an open-circuit.

Other information:

• For further information about signals and other values, see Signal specification
• To access and replace the relay, see Integrated relay/fuse box cargo compartment/rear electronic module, replacing
• When the relay is installed but not activated, the voltage at the relay guide (terminal #2) must be 12 V
• See Checking wiring and terminals. Permanent fault .

Fig 1: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

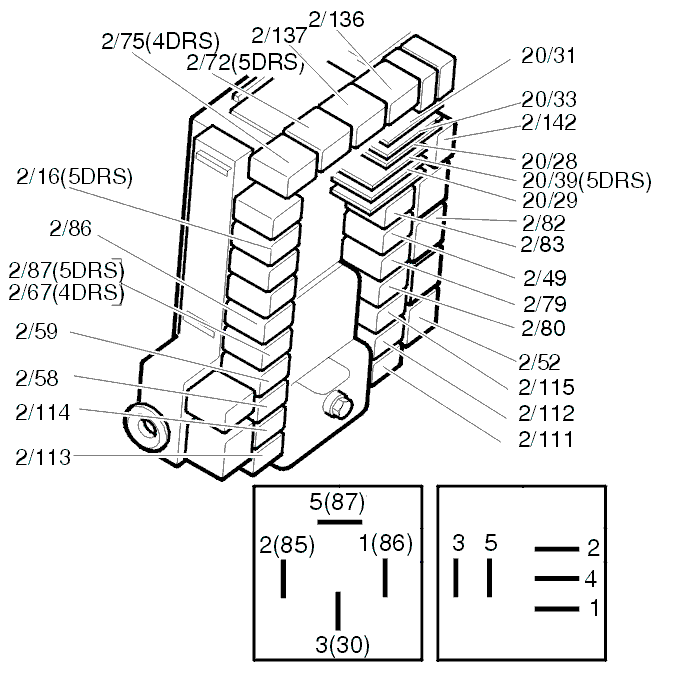

Fig 2: Identifying Relays And Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
