Checking for open circuits and short circuits

Check the wire between the upper electronic module and rear reading lamp unit for an open circuit as described in Open-circuit, permanent faults , and a short circuit to voltage supply as described in Short-circuit to supply voltage. Permanent faults .

UEM-0031 Rear left reading lamp

Control unit #7 and reading lamp unit #1.

UEM-0033 Rear right reading lamp

Control unit #17 and reading lamp unit #7.

Additional information:

• For information on signals and additional values, see Signal specification .
• To connect the test box, see Connecting the breakout box .

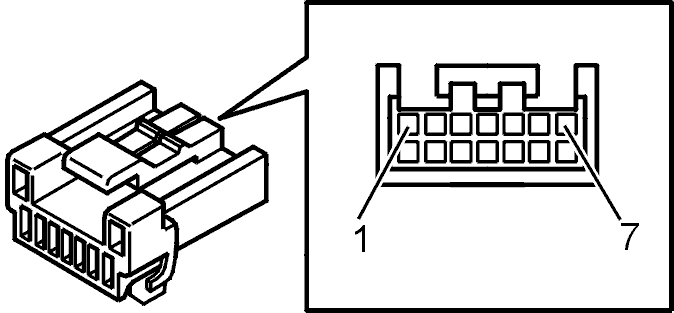

Fig 1: Identifying Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohm Meter

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
