The mass air flow (MAF) sensor

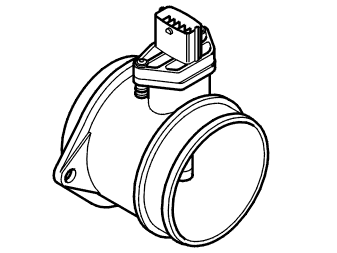

Fig 1: Identifying Mass Air Flow (MAF) Sensor
Courtesy of VOLVO CARS OF NORTH AMERICA.
Mass air flow (MAF) sensor resistive film. Measurement range 12- 640 kg/h.
Q (kg/h)
12.0
15.0
30.0
60.0
V (Volt)
1.31
1.39
1.69
2.11
