Control Module Fuel Pump (FP), Replacing: Removal: Disconnect

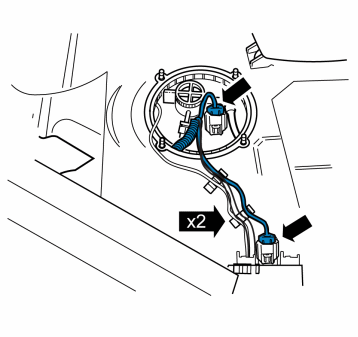

Fig 1: Identifying Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

• cable harness' connectors by wheel housing/sill and fuel pump
• cable from brackets

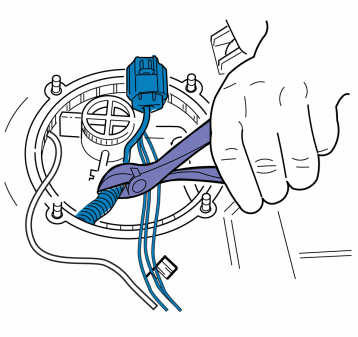

Fig 2: View Of Cutting Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut off the cable harness as shown. This is done to make it easier to remove the cable harness.

Remove the remaining part of the cable harness with connector.
