Control Module Fuel Pump (FP), Replacing: Removal: Remove
Courtesy of VOLVO CARS OF NORTH AMERICA.
Raise the car

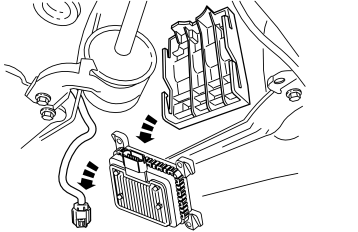

Remove:
- the connector from the control unit
- control module from the vehicle
- cable harness from its brackets
- cable harness from the vehicle
Check that the fuel line is located in its clamps.
