Impulse Sensor, Diesel Connector End View (7/25)

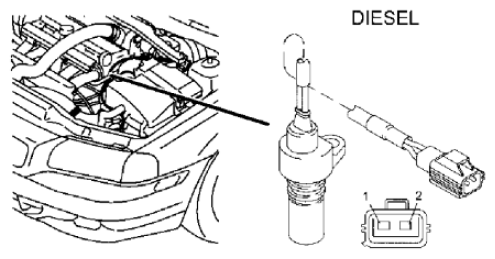

Fig 1: Impulse Sensor, Diesel Connector End View (7/25)
G10807298Courtesy of VOLVO CARS CORPORATION
