Unlocking The Contact Reel

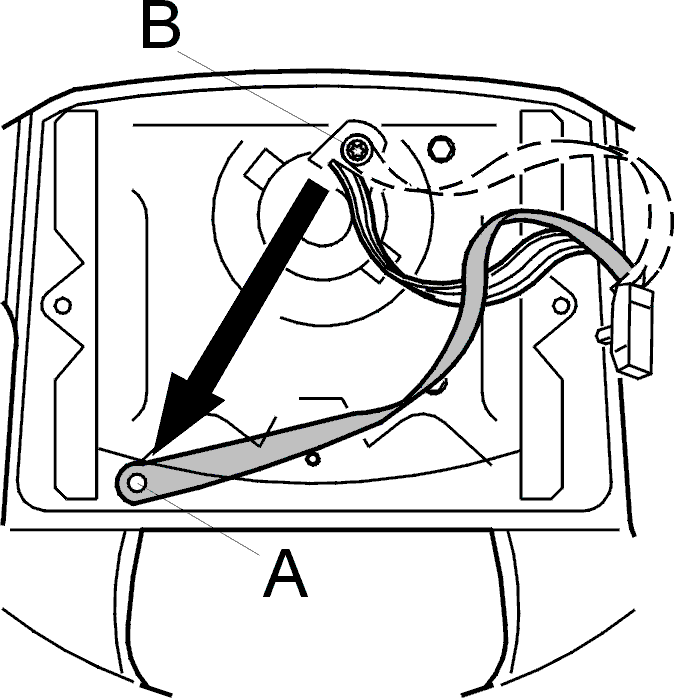

Fig 1: Unlocking Contact Reel
GLL102446Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove screw from lock position (B) and install it in the parking position (A). Do not detach the screw from the plastic strip.

The contact reel is now unlocked (unsecured) and the steering wheel can be turned.
