Remove Steering Wheel, Steering Wheel Covers And Switches

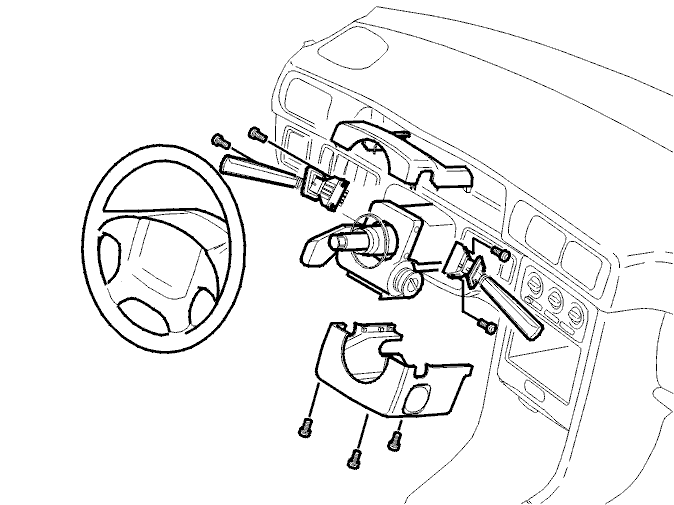

Fig 1: Identifying Steering Wheel, Steering Column Cover, Selector, And Torx Screws
GLL102309Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

The steering wheel must never be turned while the contact reel is locked. The contact reel pin will shear off.

3 Torx 20 screws in the steering wheel cover.

2 Torx 20 screws in the switches.

To remove and install contact reel, see Replacing SRS contact reel .
