Installing The Camshaft Belt

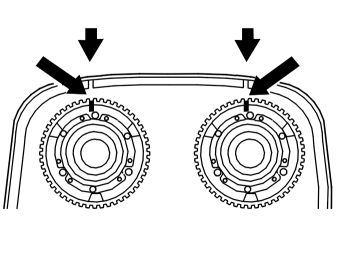

Fig 1: Timing Gear Pulley Marking Aligned With Marking On Upper Timing Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Undo the center screw and continue turning clockwise until the timing gear pulley marking aligns with the marking on the upper timing cover.

Tighten the center screw in the variable valve timing unit.

Tighten, see: Summary of tightening torques for specific components .
