Aligning The Crankshaft

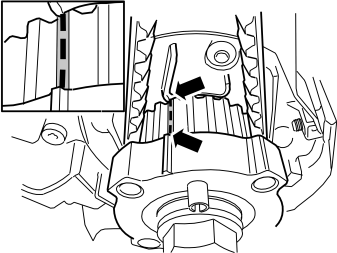

Fig 1: Marking On Crankshaft Timing Gear Pulley Aligned With Marking On Oil Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the crankshaft counterclockwise to its stop against the crankshaft adjustment tool. Check that the marking on the crankshaft timing gear pulley aligns with the marking on the oil pump.
