Installing The Timing Belt

Install the belt in the following order:

1. the belt pulley on the crankshaft
2. the idler pulley
3. cam wheel, intake camshaft
4. water pump
5. belt tensioner.

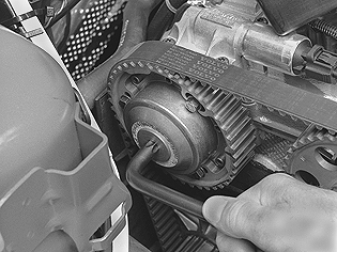

Fig 1: Turning Variable Valve Timing Unit Clockwise To Stop

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the variable valve timing unit clockwise to the stop.

Check that the markings on the belt pulley and the upper timing cover align.

Fig 2: Timing Belt Routing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the timing belt over the exhaust camshaft's cam wheel.
