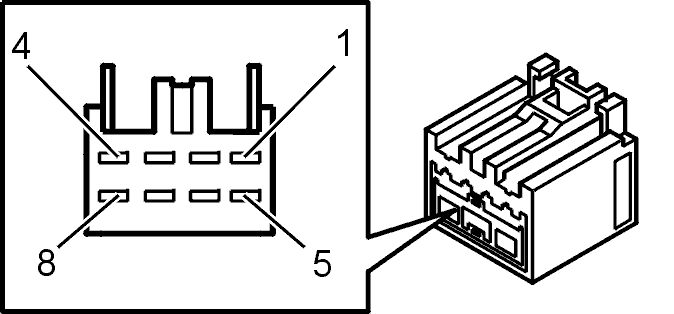

Connector, Black (8-Pin)
Before taking any readings, read Connecting the breakout box and checking the ground terminals .
Terminals D1-D8 correspond to terminals 29-36 on the breakout box.
| Terminal | Terminal on the breakout box | Signal type | Not operated | During operation | Other |
|---|---|---|---|---|---|
| #D1 | #29 | Positive power supply (M2+), front backrest motor | U = Ulow | U = Ubat | |
| #D2 | #30 | Negative supply (M2-), rear backrest motor | U = Ulow | U = Ubat | |
| #D3 | #31 | Signal (H2+), hall sensor 2 | U = Ubat | A pulsed signal with duty = 50% f<= 100 Hz |
One pulse / engine revolution High pulse value: Ubat Low pulse value: 7.0-9.0 V (60-70% of Ubat |
| #D4 | #32 | Signal ground (H2G), hall sensor 2 | U = Ulow | U = Ulow | |
| #D5 | #33 | - | - | - | |
| #D6 | #34 | - | - | - | |
| #D7 | #35 | - | - | - | |
| #D8 | #36 | - | - | - |
