Checking The Markings And Belt Tension

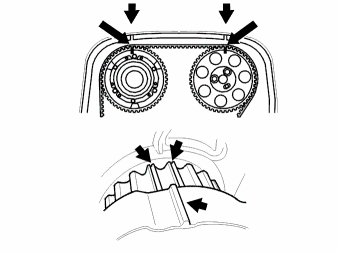

Fig 1: Inspecting Markings And Belt Tension

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the upper timing cover.

Turn the crankshaft 2 rotations. Check that the markings on the crankshaft and timing gear pulleys correspond.

Remove the upper timing cover.
