Diagnostic Trouble Code (DTC) Information RSE-U300004

Condition

Rear seat entertainment module (RSE) checks internal temperature components.

The diagnostic trouble code is generated if the control module detects:

Internal fault in Rear seat entertainment module (RSE).

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

Engine running
Control module supplied with power.

NOTE:

The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.

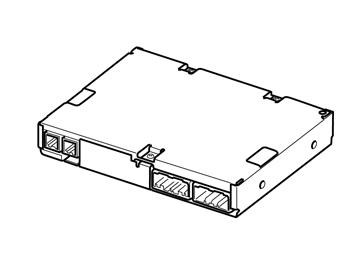

Fig 1: Identifying Rear Seat Entertainment Module (RSE)

Courtesy of VOLVO CARS CORPORATION

Substitute Value

None.

Possible Source

Damaged rear seat entertainment module (RSE).

Fault symptom[s]

Rear seat entertainment/No/reduced/incorrect function
