Fuel Pump (6/35): Terminal

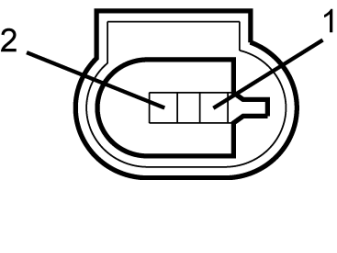

Fig 1: Connector Terminal Identification
GLL155151Courtesy of VOLVO CARS CORPORATION
Connector terminal Control module terminal Signal type
#1 #5 in 8-pin external connector Fuel pump, control signal
#2 - Fuel pump, ground
