Supplemental Restraint System Module (SRS) - Removal And Installation
>>
Restraints
>>
Supplemental Restraint System Module (SRS), Replacing
>>
Removal
>>
SRS Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
SRS Control Module

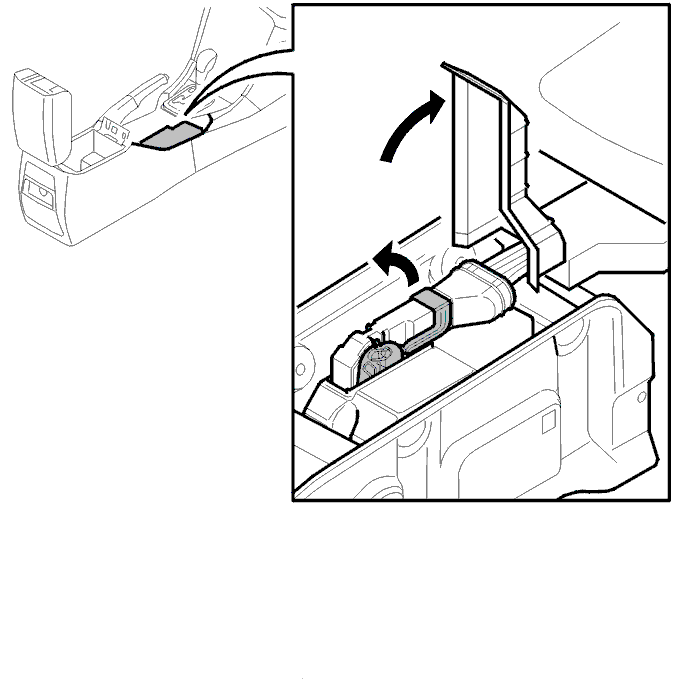

Fig 1: Identifying Boot & Connector
Courtesy of VOLVO CARS CORPORATION
Push the boot to one side and disconnect the connector.

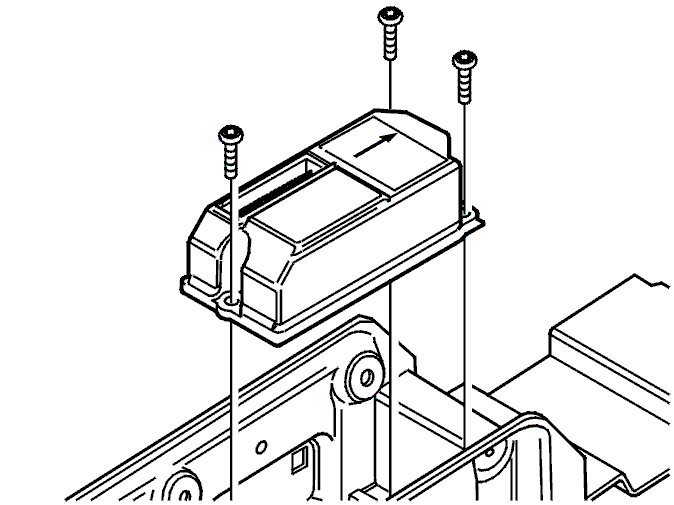

Fig 2: 3 Control Module Screws
Courtesy of VOLVO CARS CORPORATION
Remove the 3 control module screws (Torx 30).
Lift the control module.
Courtesy of VOLVO CARS CORPORATION
Courtesy of VOLVO CARS CORPORATION
