Diagnostic Trouble Code (DTC) Information DDM/PDM-0002

Condition

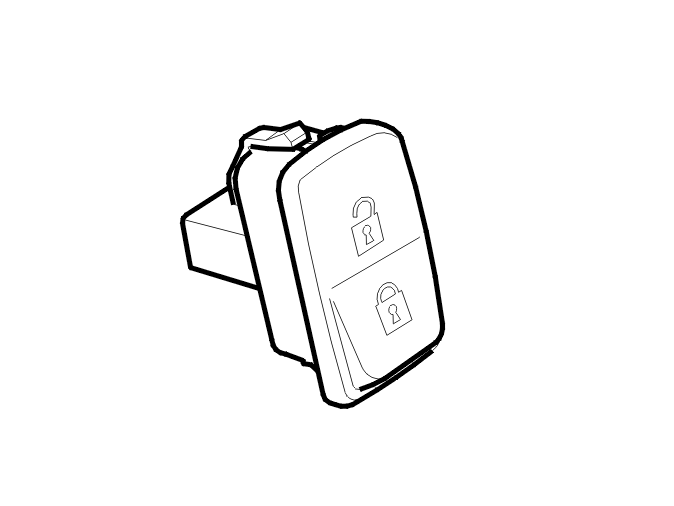

Fig 1: Identifying Central Locking Button

Courtesy of VOLVO CARS CORPORATION

The diagnostic trouble code (DTC) is stored if the control module registers that the central locking button has been pressed for more than 60 seconds.

Substitute Value

• None.

Possible Source

• The button has jammed in the pressed in position
• Damaged central locking button.

Fault symptom[s]

• Cannot be controlled using the central locking switch.
