Function Test

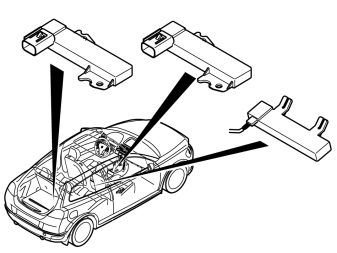

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS CORPORATION

• Ignition on.

  HINT: The inner antennas are connected to the same driver circuit in the keyless vehicle module (KVM).

  Check the inner antenna circuit by clicking on the VCT2000 symbol in VIDA (Volvo scan tool).

  Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA (Volvo Scan Tool)

  Courtesy of VOLVO CARS CORPORATION
  Fig 3: Locating Keyless Vehicle Module (KVM)

  Courtesy of VOLVO CARS CORPORATION

Was the function OK?

• YES

  Refer to FAULT-TRACING INFORMATION

• NO

  Refer to CHECKING THE WIRING
