Power Seat Module, Left (PSL)

Connector A

Fig 1: Identifying Connector C1

GLL141036

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE, CONNECTOR A

Breakout box connection	Control module terminal	Signal type	Ignition on Inactive/active	Ignition off Inactive/active	Other
-	#A1	Power supply	U = U _bat	U = U _bat	-
-	#A2	Motor 1+	U = U _low /U _bat	U = U _low /U _bat	Regulates front/rear adjustment of seat.
-	#A3	Motor 2+	U = U _low /U _bat	U = U _low /U _bat	Regulates backrest angle.
-	#A4	Motor 3+	U = U _low /U _bat	U = U _low /U _bat	Regulates seat cushion height.
-	#A5	Motor 4+	U = U _low /U _bat	U = U _low /U _bat	Regulates front edge angle of seat cushion.
-	#A6	Motor -, common	U = U _low /U _bat	U = U _low /U _bat	M1-, M2-, M3-, M4-
-	#A7	Ground	U _low	U _low	-

Connector B

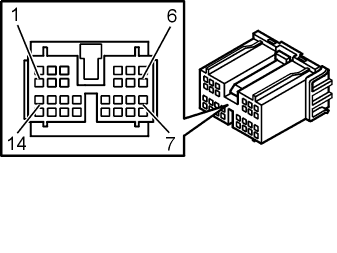

Fig 2: Connector B Signal Table

GLL104058

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE, CONNECTOR B

Breakout box connection	Control module terminal	Signal type	Ignition on Inactive/active	Ignition off Inactive/active	Other
#43	#B1	Signal supply, extended X	U = U _bat	U = U _bat	-
#44	#B2	Switch, forward	U = U _low /U = U _bat	U = U _low /U = U _bat	Regulates front/rear adjustment of seat cushion and backrest angle for easy entry
#45	#B3	Communication cable, control module (CAN-L)	1.5-2.5 V	1.5-2.5 V	-
#46	#B4	Communication cable, control module (CAN-H)	2.5-3.5 V	2.5-3.5 V	-
#47	#B5	Switch, rearward	U = U _low /U = U _bat	U = U _low /U = U _bat	Regulates front/rear adjustment of seat cushion and backrest angle for easy entry
#48	#B6	Ground	U _low	U _low	-
#49	#B7	Ground, Hall sensor 1-4	U _low	U _low	Common ground
#50	#B8	-	-	-	-
#51	#B9	Ground/signal Hall sensor 5	U = 0.9-3.7 V	U = 0.9-3.7 V	Ground/Control signal hall sensor backrest
#52	#B10	Hall sensor 5	U = 5 V	U = 5 V	Supply hall sensor backrest
#53	#B11	Hall sensor 1	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	One pulse/motor rotation Pulse high value: U _bat Pulse low value: 7.0-9.0 V (60-70% of U _bat )
#54	#B12	Hall sensor 2	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	One pulse/motor rotation Pulse high value: U _bat Pulse low value: 7.0-9.0 V (60-70% of U _bat )
#55	#B13	Hall sensor 3	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	One pulse/motor rotation Pulse high value: U _bat Pulse low value: 7.0-9.0 V (60-70% of U _bat )
#56	#B14	Hall sensor 4	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	U = U _bat /a pulsed signal with duty= 50% f<= 100 Hz	One pulse/motor rotation Pulse high value: U _bat Pulse low value: 7.0-9.0 V (60-70% of U _bat )
