Checking The Component And Wiring

Checking fuses

Check the fuse for the fuel pump.

Replace the fuse if it is damaged.

Checking the relay and supply

Check that the fuel pump (FP) relay is correctly installed.

Also check the relay terminal, in particular terminal #2. Check for a short-circuit to ground.

Check the voltage at the output for the fuel pump (FP), central electronic module (CEM) connector terminal #C16 (#16). The voltage must be approximately 12 V when the fuel pump (FP) relay is activated.

Check the signal cable between the central electronic module (CEM) and the fuel pump (FP) control module. Check for an open-circuit. Check for a short-circuit to ground.

Take readings between:

• Central electronic module (CEM) terminal #C16 (#16) and fuel pump (FP) control module (TBD) terminal #2.

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX, CENTRAL ELECTRONIC MODULE (CEM)
• see SIGNAL DESCRIPTION CENTRAL ELECTRONIC MODULE (CEM)
• To replace the relay, see:

  CONTROL MODULE RELAY BOX PASSENGER COMPARTMENT

• see CHECKING WIRING AND TERMINALS

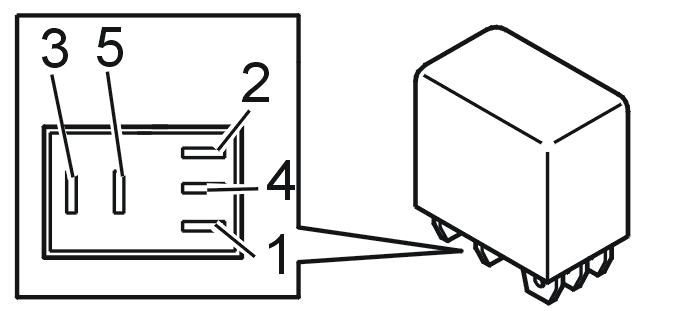

Fig 2: Identifying 5-Bit Connector

Courtesy of VOLVO CARS CORPORATION

Refer to VERIFICATION
