Diagnostic Trouble Code (DTC) Information ECM-433D

Condition

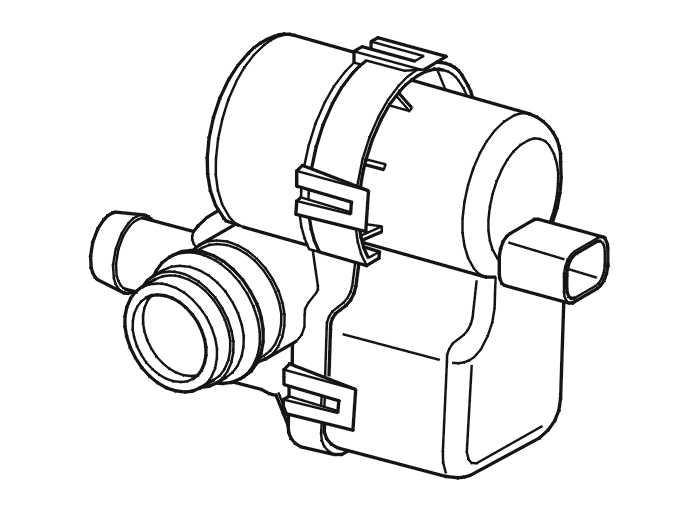

Fig 1: Identifying Volvo Leak Detection Pump (Leak Diagnostic Unit)

Courtesy of VOLVO CARS CORPORATION

The diagnostic trouble code (DTC) is stored if the engine control module (ECM) registers that the signal from the pump for the leak diagnostic unit is too low.

The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute Value

The leak diagnostic is disabled.

Possible Source

• Short-circuit to ground in the signal cable.

Fault symptom[s]

• Malfunction indicator lamp (MIL) lit.
