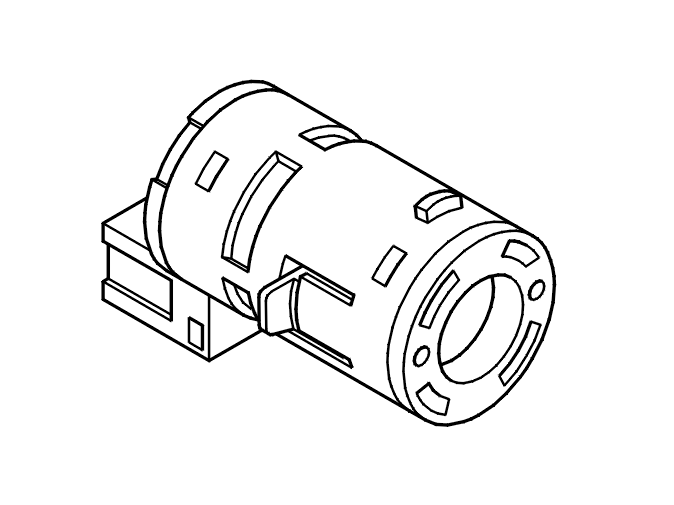

Resistance Values, Passenger Compartment Temperature Sensor
The component specification gives the value of the component without the connector connected.
RESISTANCE VALUE
| Measurement values, resistance | Other |
| -40°C = approximately 207.1 kΩ -30°C = approximately 118.9 kΩ -20°C = approximately 70.8 kΩ -10°C = approximately 43.6 kΩ 0°C = approximately 27.6 kΩ 10°C = approximately 18.0 kΩ 20°C = approximately 12.0 kΩ 25°C = approximately 9.9 kΩ 30°C = approximately 8.2 kΩ 40°C = approximately 5.7 kΩ 50°C = approximately 4.0 kΩ 60°C = approximately 2.9 kΩ |
Measure the resistance between terminals #3 and #5. Only for the ECC version of the climate control module (CCM). |
