Diagnostic Trouble Code (DTC) Information SWM-0A09

Condition

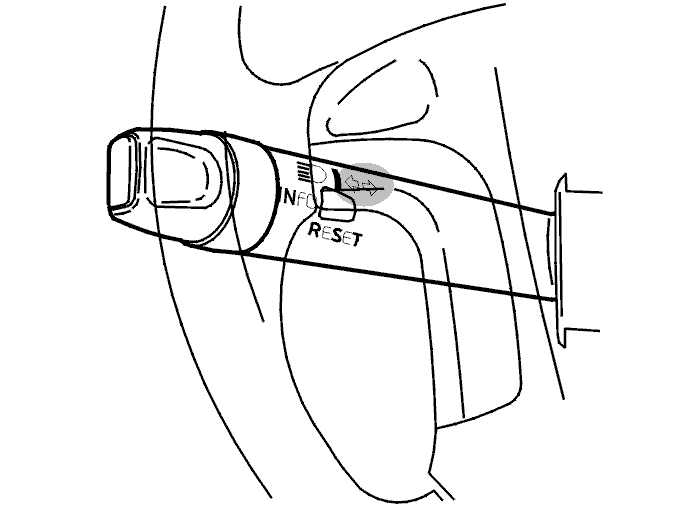

Fig 1: Identifying Control Stalk

Courtesy of VOLVO CARS CORPORATION

The steering wheel module (SWM) continuously checks the system components. The diagnostic trouble code (DTC) is stored if the control module registers that the rain sensor function is present but that the rain sensor button is not installed.

The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute Value

• None.

Possible Source

• Incorrect control stalk, installed in the left-hand side of the car.

Fault symptom[s]

• Rain sensor button missing.
