Installing The Steering Column

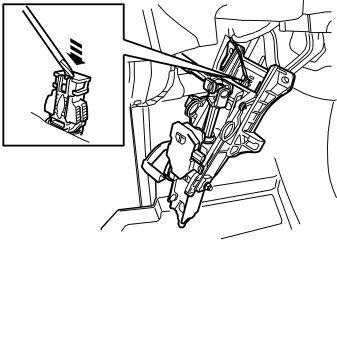

Fig 1: Installing Pyrotechnics Ignition Cable

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only applies to vehicles with pyrotechnics in the steering column.

Position the steering column so that the cable is not stretched, install the connector.

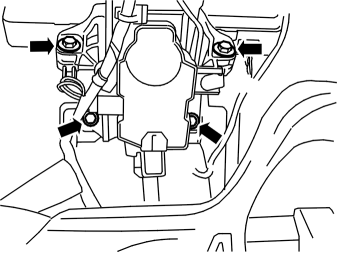

Fig 2: Installing Steering Column Bolts

Courtesy of VOLVO CARS CORPORATION

NOTE:

The replacement part screws are of different lengths. The two shorter screws must be positioned innermost in the steering column against the firewall.

Install:

the steering column, ensure to align the guide lugs.
the 4 M8 screws, use new screws. Tighten alternately.
