Installing Components

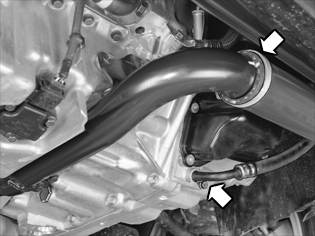

Fig 1: Identifying Oil Line W/ Quick-Release Connector To Oil Cooler And Oil Line To Transmission

Courtesy of VOLVO CARS CORPORATION

Install:

the oil line with the quick-release connector to the oil cooler
the oil line to the transmission. Use a new O-ring. Tighten the screw. See: TIGHTENING TORQUE .
