Removing Components
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

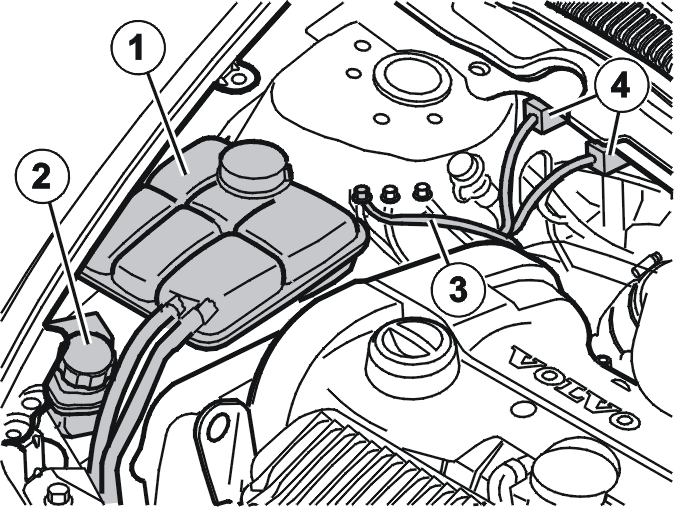

Remove:
- the coolant reservoir (1) but leave the hoses in place. Place the reservoir on the valve cover
- the power steering fluid reservoir and hoses (2) from its mounting by pulling it upwards at an angle.
Remove:
- the ground strip (3) from the connection at the right-hand suspension turret
- the 2 switches (4) for the air conditioning (A/C) system pressure sensor from the air conditioning (A/C) pipes / hoses
- front bumper cover. For model years 2006-2009, see COVER BUMPER FRONT (2006-2009) . For model years 2010-2012, see COVER BUMPER FRONT (2010-2012)
