Headlamp Control Module (HCM): Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the plenum cover, see PLENUM CHAMBER

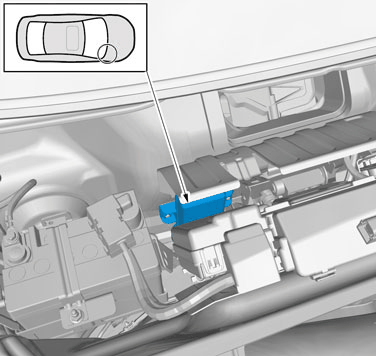

Fig 1: Identifying Headlamp Control Module (HCM)
GLL177768Courtesy of VOLVO CARS CORPORATION

Torque:  M5

5 Nm

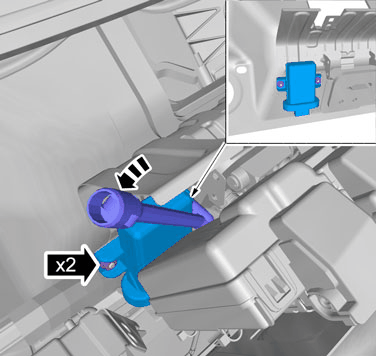

Fig 2: Identifying M5 Bolts
GLL177769Courtesy of VOLVO CARS CORPORATION

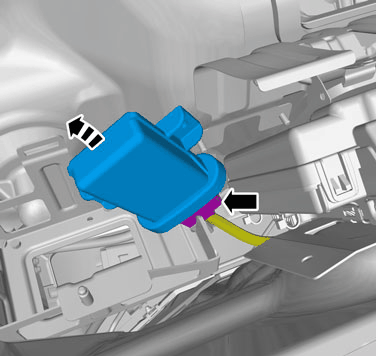

Fig 3: Locating Headlamp Control Module (HCM)
GLL177770Courtesy of VOLVO CARS CORPORATION
