Removing the kit with the control module
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

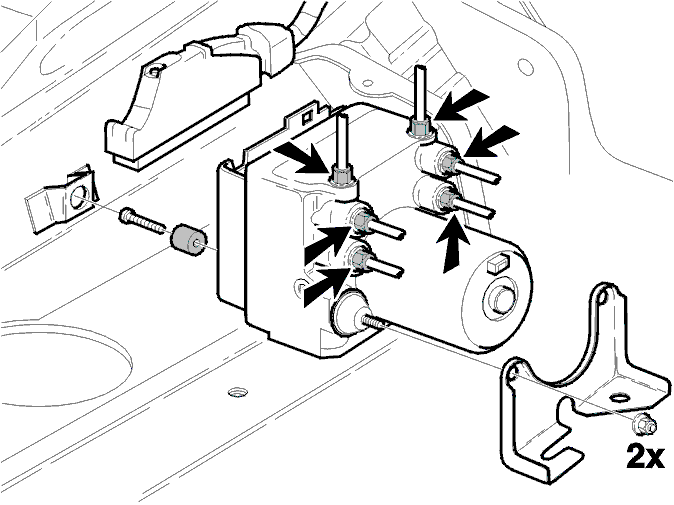

Disconnect the brake pipes on the modulator. Collect the brake fluid.
Remove the bracket for the brake pipe from the inside of the fender.
Remove the two bolts and the support at the front. Remove the rubber components.
Twist the control module from the inside of the fender. Disconnect the connector.
Remove the brake pipes from the modulator.
Place the power steering pipes to one side.
Carefully bend the brake pipes upwards so that they are out of the way.
Remove the rubber from the centrally placed bolt.
Plug the brake pipes.
