Fuel Level Sensor, Pump Side Connector End View (7/143)

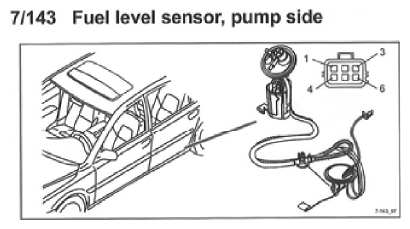

Fig 1: Fuel Level Sensor, Pump Side Connector End View (7/143)
G10808338Courtesy of VOLVO CARS CORPORATION
