Installing/Removing The ISOFIX-Guide

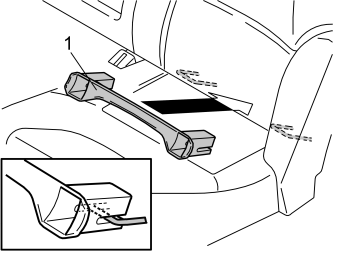

Illustration A applies to the passenger seat

Fig 1: Identifying ISOFIX Guide And Passenger Seat

Courtesy of VOLVO CARS CORPORATION

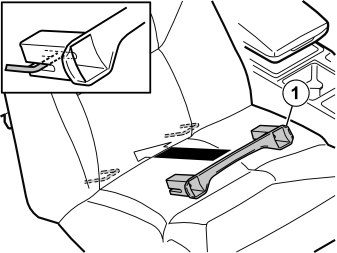

Illustration B applies to the rear seat

Fig 2: Identifying Isofix Guide

Courtesy of VOLVO CARS CORPORATION

Installing the Isofix guide:

• Press the Isofix guide (1) into place between the backrest and seat cushion. Press it down to the Isofix mountings.
• The Isofix mountings must be visible in the guide's (1) openings. Check that the guide is correctly installed.

Removing the Isofix guide:

• Grip the outer edges. Carefully pull the guide outwards.
