Vehicles Early Version

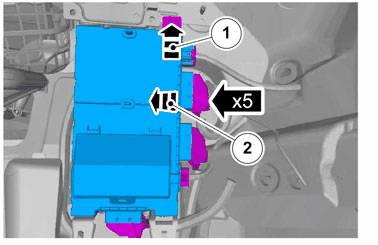

Fig 1: Identifying Control Module Relay Box Passenger Compartment
GLL171196Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.
