TCM-P170164: Reverse Engagement Error. Algorithm Based Failures. Signal Plausibility Failure (B8444S, TF-80SC AWD; 2007-2010): Fault-Tracing: Verification: Verification

HINT: After carrying out the repair, check that the fault has been remedied.

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Connector(s) Reinstallation

Courtesy of VOLVO CARS CORPORATION

• Ignition off.
• Reinstall the connectors, components etc.
• The gear shift position sensor for the transmission must be calibrated if the control module has been disconnected.
• Start the engine.

  Test drive the vehicle following: TEST DRIVE SCHEDULE, DESCRIPTION

  Check that the transmission does not display any obvious  function faults.

  NOTE:

  When test driving, the oil temperature must be above 20 °C.

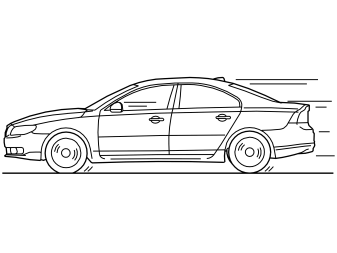

  Fig 3: Identifying Test Drive

  Courtesy of VOLVO CARS CORPORATION

Is the function OK?

• YES

  VERIFIED:  Troubleshooting has been completed.

• NO

  Refer to INFORMATION
