Satellite Radio Control Module, Removal And Installation: Removal

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS CORPORATION

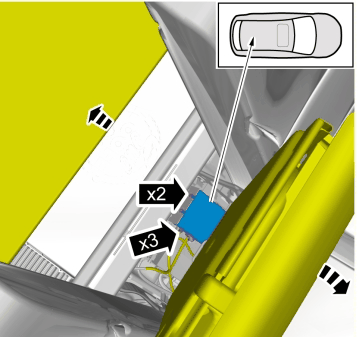

Fig 2: Removing Digital Audio Module (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Remove the seat cushion, rear seat, see SEAT CUSHION, REAR SEAT

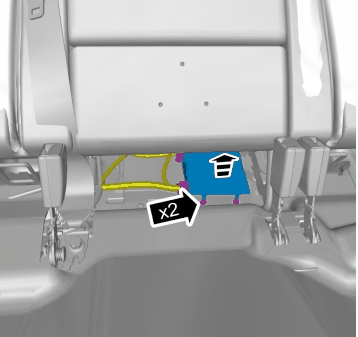

Fig 3: Removing Digital Audio Module (2 Of 2)

Courtesy of VOLVO CARS CORPORATION
