Removal And Installation

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS CORPORATION

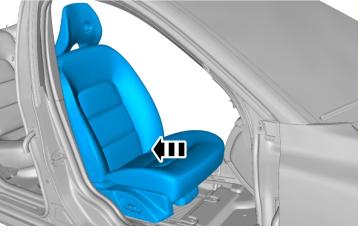

Fig 2: Adjusting Seat

Courtesy of VOLVO CARS CORPORATION

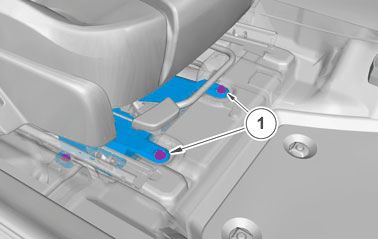

Fig 3: Identifying Component Mounting Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

Fig 4: Adjusting Seat

Courtesy of VOLVO CARS CORPORATION

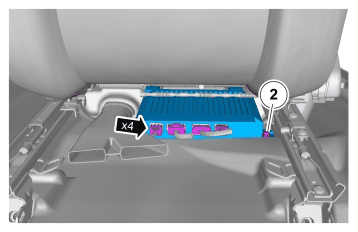

Fig 5: View Of Audio Module Connectors

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the optical connectors are clean and free of foreign material.

NOTE:

Make sure that the component terminals are not bent or damaged.

Torque: M6

10 Nm

Order and download software according to: 31282058
