Checking The Function

Fig 1: Engine Start Verification

Courtesy of VOLVO CARS CORPORATION

Check that the AOC-unit works by test-driving the vehicle on the lift (to increase the clutch oil pressure). Read off the oil pressure during the test-drive.

Test drive the vehicle following:

see TEST DRIVING ON LIFT, AUTOMATIC TRANSMISSION

see TEST DRIVING ON LIFT, MANUAL TRANSMISSION

HINT: If the AOC-unit is not working, try with replacing control module. Repeat the test-drive.

Other information:

• see SIGNAL SPECIFICATION

Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

Courtesy of VOLVO CARS CORPORATION

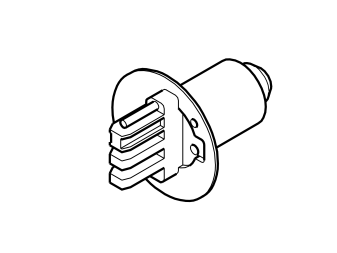

Fig 3: Identifying Connector

Courtesy of VOLVO CARS CORPORATION

Is the function OK?

• YES

  Refer to VERIFICATION

• NO

  Refer to INFORMATION
