Oil Pressure And Temperature Sensor: Terminal

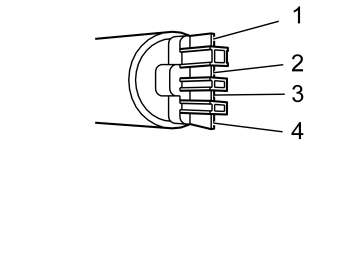

Fig 1: Connector Terminal Identification
GLL154215Courtesy of VOLVO CARS CORPORATION
Terminal connector Control module terminal Signal type
#1 #C3:1 Signal, oil temperature
#2 #C3:2 Power supply, +5 V (common)
#3 #C3:3 Signal, oil pressure
#4 #C3:4 Ground
