CEM-B102451: Start Control Unit. System Programming Failures. Not Programmed (2008-10): Fault-Tracing: Information

Central electronic module (CEM) checks communication with Start control module (SCU). Central electronic module (CEM) has received a message from Start control module (SCU) that the unit is not programmed.

Try programming Start control module (SCU) by clicking on the symbol.

If programming has not succeeded despite repeated attempts, it may be necessary to replace the Start control module (SCU).

Other information

• See IGNITION LOCK

Fig 1: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

Courtesy of VOLVO CARS CORPORATION

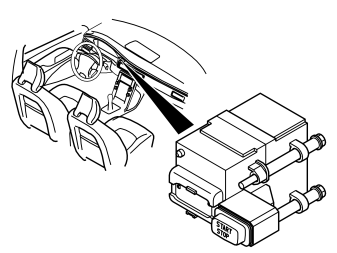

Fig 2: Identifying Start Control Unit (SCU)

Courtesy of VOLVO CARS CORPORATION
