Passenger Door Control Panels

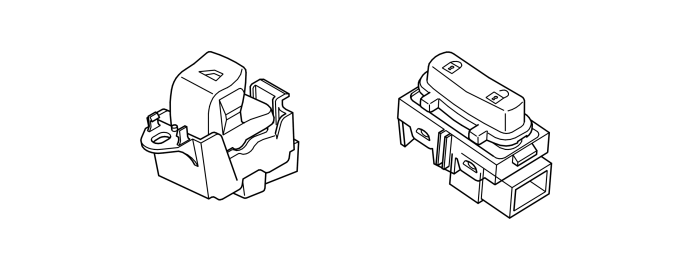

Fig 1: Passenger Door Control Panels
GLL154459Courtesy of VOLVO CARS CORPORATION

The control panels in the passenger door are directly connected to the passenger door module (PDM). The passenger door module (PDM) receives input signals from the control panels, at which time it performs the function or uses CAN to forward the signal to the control module that will perform the function.

The following functions can be controlled via the control panels:
