Adjusting The Mirror Position

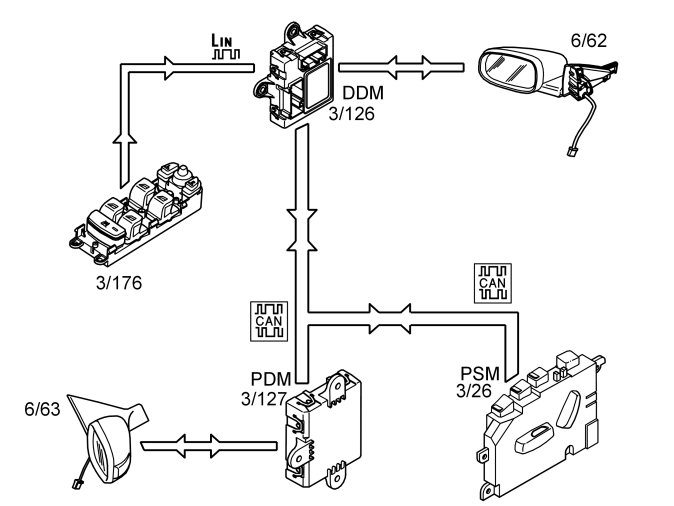

The position of the mirror is controlled using buttons on the control panel on the driver's side (3/176). The driver door module (DDM) (3/126) transmits a signal directly to the mirror on the driver's side (6/62). When adjusting the mirror on the passenger side (6/63), a signal is sent via the driver door module (DDM) to the passenger door module (PDM) (3/127) on the CAN network. The passenger door module (PDM) transmits the signal to the door mirror.
If the vehicle is equipped with power seat with door mirror memory function, the mirror position is stored by two potentiometers. A signal on the position along the X and Y-axis is received by the driver door module (DDM) or passenger door module (PDM). When a power seat button in the control panel is actuated, a signal is sent from the power seat module (PSM) (3/26) to the driver door module (DDM) or passenger door module (PDM). These set the door mirrors in the stored position. A stored position can also be associated with the remote key used to unlock the vehicle.
