Digital TV Receiver (DVB-T)

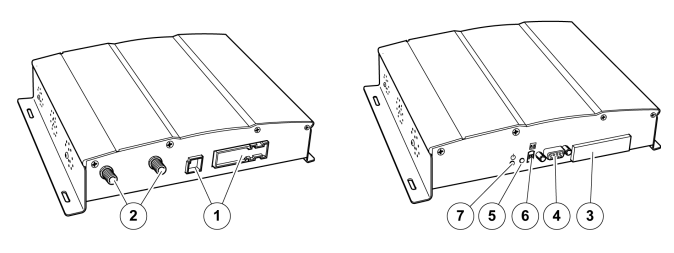

Fig 1: Identifying Digital TV Receiver (DVB-T)

Courtesy of VOLVO CARS CORPORATION

The digital TV receiver (DVB-T) is an extra option that can receive digital TV channels, convert them and send them on to the Rear seat entertainment module (RSE).

Two antennas are connected to the receiver so that the TV receiver is able to receive and send the channels.

DVB stands for Digital Video Broadcasting and is a series of internationally accepted open technical standards for digital television. The suffix "T" stands for Terrestrial and alludes to the subset of standards that regulate how a digital TV signal should appear when transmitted terrestrially.

The receiver in S80 (07-) is installed on the left-hand side inside the side panel, and in V70 (08-) in the storage compartment below the cargo compartment floor.

The following connections, switches and card slots can be found on the TV receiver:

Connection to the vehicle and Rear seat entertainment module (RSE) the two connectors.
Connections for two antennas.
Slot for a subscription/program card.
Serial communications port (serial port RS232).
Reset button.
Two functions switches.
Green status LED.

The TV receiver is voltage fed directly from the battery via connector #A4 for the Rear seat entertainment module (RSE) and then a fuse. The fuse holder is on the TV receiver.

To easily, see whether the receiver is voltage fed and ground switch on the ignition. The status LED should then be lit green.

Subscription/program card

Used to watch paid-by-view channels.

Serial communications port (serial port RS232)

Used to connect a computer when updating the software.

NOTE: Special instructions are issued when this is to be performed.

Reset button

Used to restart the TV receiver when the ignition is on. Switching the ignition off and on has the same effect.

Function switches

Used to:

Change the signal standard between PAL and NTSC.
Switch the TV receiver to software update mode.
Deleting stored TV channels.

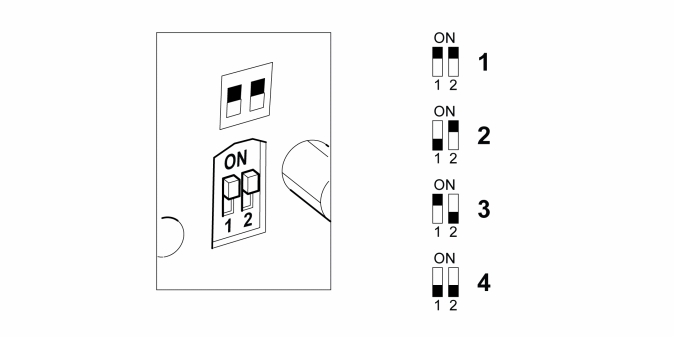

Fig 2: Viewing Function Switches

Courtesy of VOLVO CARS CORPORATION

The following settings are possible:

Normal mode
Software update mode
Mode to delete programmed TV channels.
Mode to change signal standard between PAL and NTSC.

To initiate one of the settings, proceed as follows:

Ignition on.
Set the switches to the required mode as set out above.
Ignition off and on again. This initiates the selected function. As an option the reset button can be used instead of switching the ignition off and on.
The selected function is now initiated.

When initiation takes place with the switches in the positions set out above the following occurs:

Mode 2. A special menu to update the software is shown on the screens.
Mode 3. All stored channels are deleted directly. A message about deletion is shown on the screens followed by a menu to restore the channels.
Mode 4. The receiver switch the signal standard from either PAL to NTSC depended on the original setting. Each time the system is restarted (ignition off and on again) or when the reset button is used, the TV receiver switches between PAL or NTSC. The screens can handle both types of standard signals so that no difference in picture is seen.

HINT: If the customer comes in with his/her vehicle and complains about one of the following, the position of the switches, as set out above must be checked. Normally these should always be set in Normal mode.

a software update menu is always shown on the screens when showing the TV.
the stored TV channels are always deleted and a message is shown.
