Passenger Compartment Temperature Sensor 7/41: Notes

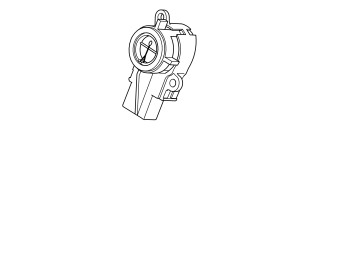

The passenger compartment temperature sensor continually provides the climate control module (CCM) information on passenger compartment temperature. To prevent the sensor from being affected by surround electronics, a fan is used to blow air from the passenger compartment onto the sensor.

Type

Passenger compartment temperature sensor:  Temperature-dependent, NTC resistance (negative temperature coefficient).

Passenger compartment sensor fan:  Electromagnetic motor.

characteristic

Passenger compartment temperature sensor:  Resistance between terminals #30 and #38 on the breakout box should be approx. 11.99 kΩ at +20 °C. Resistance decreases as temperature increases.

Passenger compartment sensor fan:  The fan is powered by the climate control module (CCM).

Other information

Passenger compartment temperature sensor:

Diagnostic trouble code B1A7111 is generated upon short circuit to ground.

Diagnostic trouble code B1A7115 is generated upon short circuit to supply voltage or open circuit.

Passenger compartment sensor fan:

Diagnostic trouble code B105A11 is generated upon short circuit to ground.

Diagnostic trouble code B105A15 is generated upon short circuit or open circuit.

Diagnostic trouble code B105A71 is generated upon mechanical fault if something fastens in the rotor.
