Front Panel, Replacing
Removal
- Remove the dashboard environment panel. See REPLACING DASHBOARD ENVIRONMENT PANEL .
- Remove the panel for the switches. See REPLACING CLIMATE CONTROL UNIT SWITCHES .
- Remove the rear cover.
Front panel

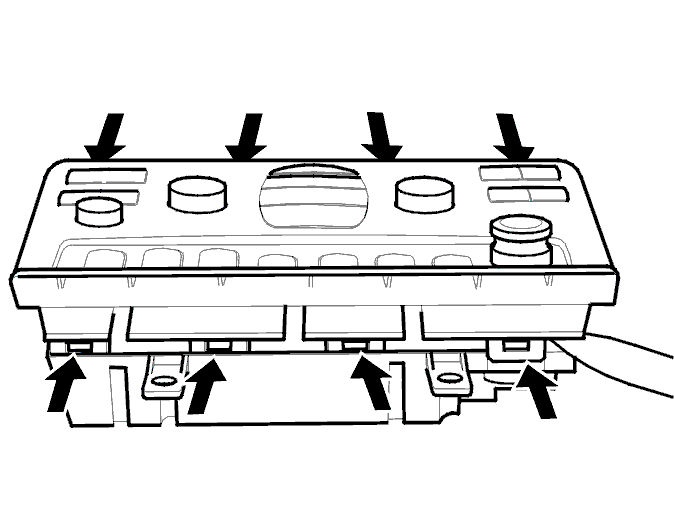

- Release the catches. Pull off the front panel.NOTE:
Be careful if the front panel is to be reused. The panel has double-sided adhesive tape on the reverse.
Installation
- When reusing the front panel, check that the tape is intact and secures correctly. Replace the tape if necessary.
- For a new front panel, remove the masking tape from the double-sided adhesive tape and press the front panel into place.
Install in reverse order.
