Replacing Dashboard Environment Panel
Ignition off.

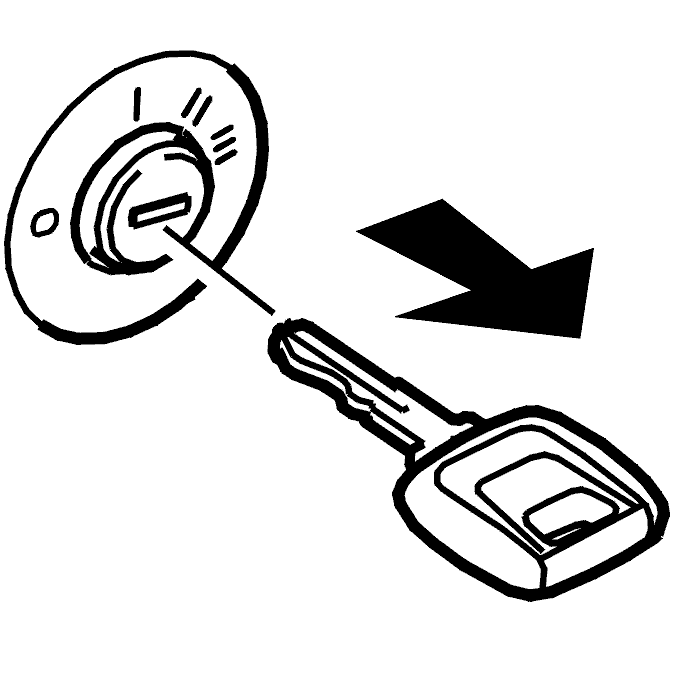

Remove the key.
The key must be removed to ensure that the ignition is not switched on by mistake.
After the key has been removed: Wait 3minutes before starting work.
V70
V70 has a pen holder above the gear selector panel. Remove it. See PEN HOLDER .

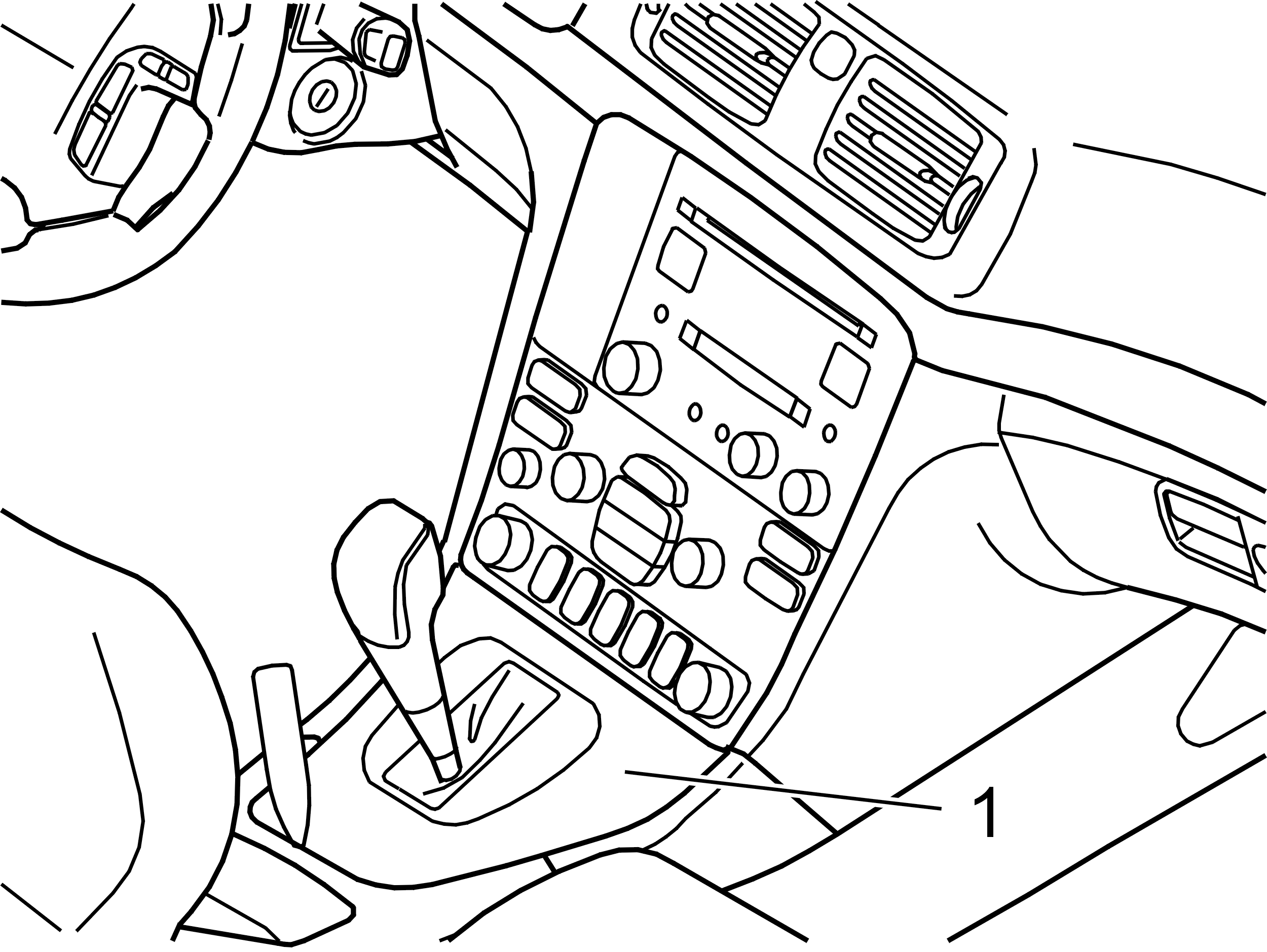

Remove the panel (1) above the gear selector:
Carefully pry off at the back using a weatherstrip tool.
S80
Remove the panel (1) above the gear selector:
Carefully pry off at the back using a weatherstrip tool.
The gear selector must be in the rearmost position before the dashboard environment panel can be removed.

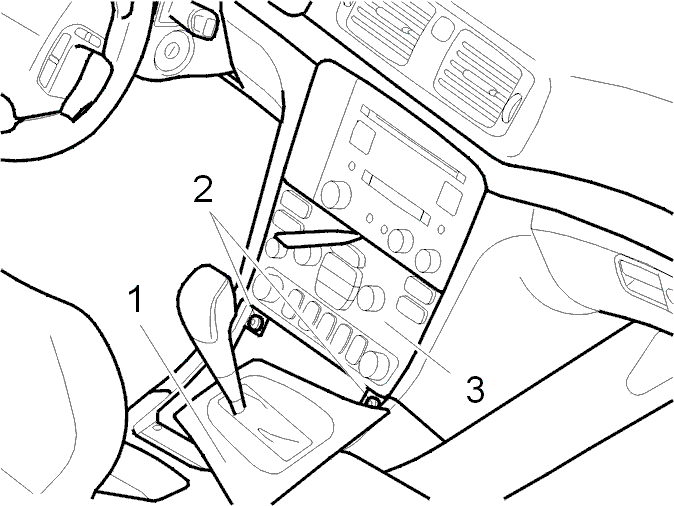

Remove:
- the two screws (2) on the lower edge of the panel.
- the panel (3).NOTE:
The radio component and the dashboard environment panel are complementary and are mounted at the join with hooked mountings.

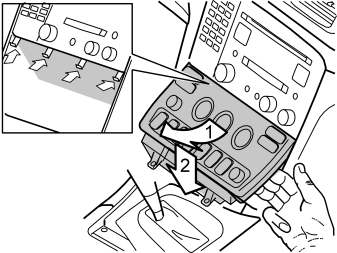

HINT: To facilitate removal: Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the center console and the dashboard environment panel.
HINT: Pull the dashboard environment panel downwards at the same angle.
HINT: The dashboard environment panel is correctly secured. Force is required to remove it.
- connectors.
Lift out the panel.
Install:
In reverse order.
If any of the outer hooks break off, this must be "rectified".

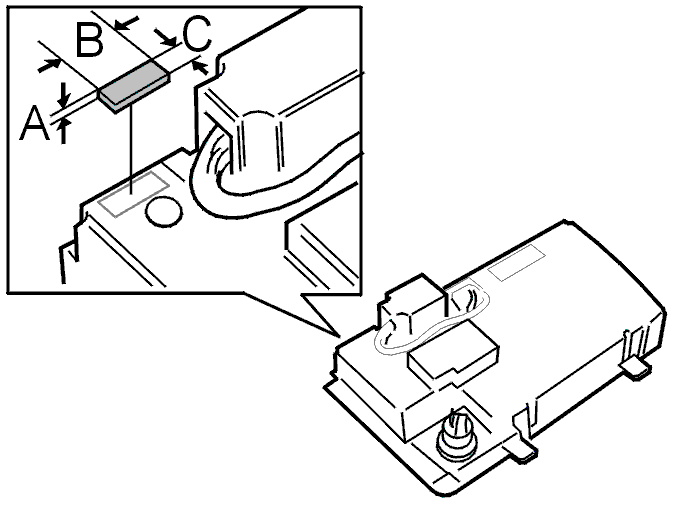

Tape the 3.5mm thick component measuring 20 X 20mm to the reverse of the dashboard environment panel. Use double-sided adhesive tape.
Fix the other side of the piece with double-sided adhesive tape so that there is a solid anchorage when reinstalling against the center console.
