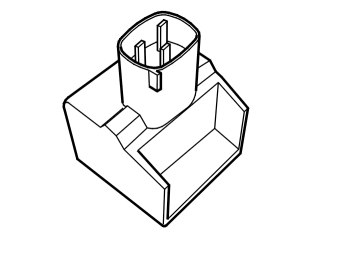

Acceleration Sensor Body: Notes
Type
Acceleration sensor: Capactive micromechanic sensor. Output signal 0 - 5 V is proportional to acceleration.
characteristic
Acceleration sensor: Voltage between terminals #1 and #2 should be approx. 2 V when vehicle is stationary. Voltage fluctuates around this value during accelerating movements.
Other information
The front acceleration sensor and rear acceleration sensor are not the same. If an acceleration sensor does not have supply voltage, the input signal to the suspension module (SUM) becomes approx. 2.36 V (no diagnostic trouble code for such).
